Linning sheet

Brand Name:YIHUIYUAN Material:PE Color:Customized Size:custom made, custom made Raw material:PE Virgin 100%

Classification :

E-mail

Product Description

UHMWPE is a unique, low friction Ultra High Molecular Weight Polyethylene (UHMWPE) with a molecular weight of more than 3 million. Combining the benefits of higher wear resistance (even greater than steel) and lower maintenance costs, the pads are easy to fabricate, install and can be fastened to steel, concrete, wood and rubber.

◇ Light weight
◇ Superior high impact strength
◇ High abrasion resistance
◇ Low co-efficient of friction
◇ Shock and noise absorption
◇ Excellent self-lubrication
◇ Good chemical resistance
◇ Excellent UV stability
◇ Ozone resistant
◇ 100% recyclable
◇ Non toxic
◇ Temperature resistant (-100℃ to +80 ℃)
◇ No moisture absorption
◇ Can be supplied pre-drilled for easy installation and chamfered to avoid snagging

Property	Test Method	Virgin Material	Unit
Molecular weight		3~9 million	g/mol
Density	ISO 1183-1:2012 /DIN53479	0.92-0.98	g/cm3
Compression Strength	ISO 604:2002	≥32	Mpa
Tensile Strength	ISO527-2:2012	≥22	Mpa
Elongation at break	ISO527-2:2012	≥280	%
Dynamic Friction coefficient	ASTM D 1894 /GB10006-88	≤0.18
Notched impact strength(Charpy)	ISO179-1:2010/GB/T 1043.1-2008	≥100	kJ/m2
Vicat softing point	ISO306:2004	≥80	℃
Hardness Shore-D	ISO 868:2003	61-66	D

Values are averages and are not specifications. ASTM test methods are under current procedures.
The manufacturing process does not limit the cross-sections and plate dimensions:
Thickness from 6-300mm
Plates size 1000 ×1000mm up to 6000 ×2000mm
The standard color is black. Other colors such as blue, green, yellow, white or red is available upon request.

Parameter

item	value
Place of Origin	China
	Shandong
Brand Name	YIHUIYUAN
Material	PE
Color	Customized
Size	custom made, custom made
Raw material	PE Virgin 100%
Feature	Wear Resistance
Usage	Widely
Keyword	UHMWPE
Logo	Accept Customized Logo
Certificate	ISO CECS
Type	Extrusion
Density	0.93-0.97g/cm3

Company Profile

Packing and shipping

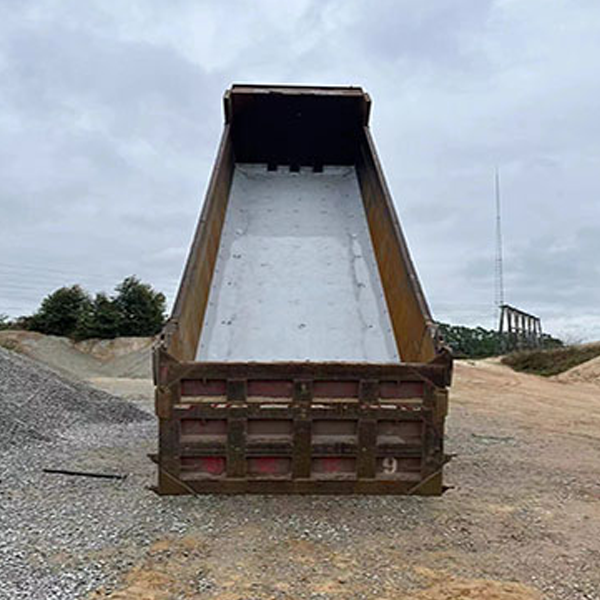

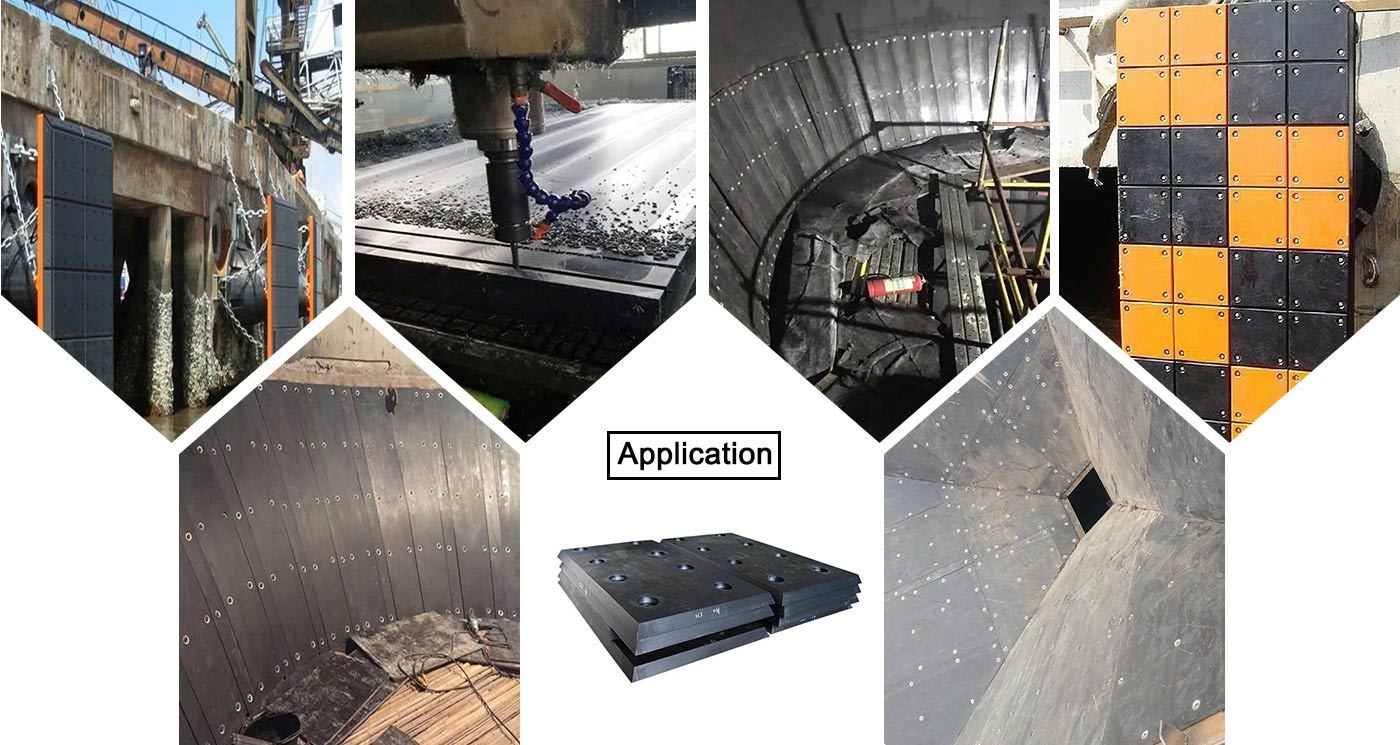

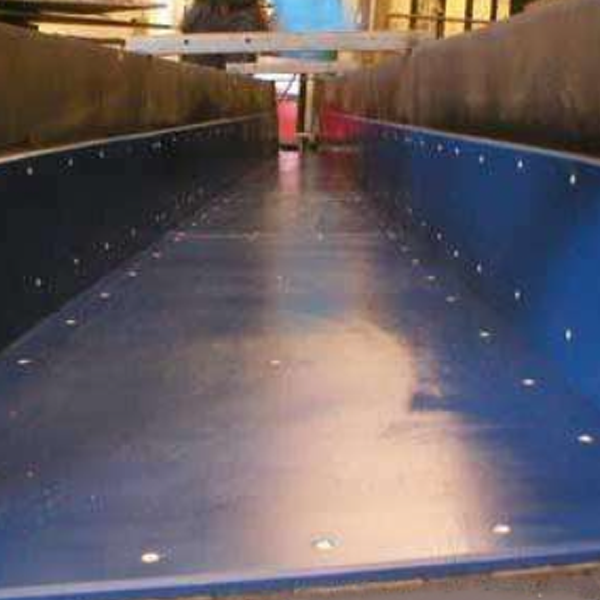

Application

Linning sheet
