Plastic HDPE sheet for industrial use

High Density Polyethylene (HDPE) sheets are extremely impact resistant, abrasion resistant and have a low coefficient of friction. The material is also moisture, stain and odor resistant and is FDA approved for use in the food processing industry (mainly for cutting boards). The durability of the material makes it ideal for a variety of applications such as water tanks, chute linings, bottle/cap production and many other industrial uses. Boron-containing PE provides radiation protection in nuclear facility applications.

Classification :

HDPE board

+8618963000101

yihuiyuan@yhyplastics.com

E-mail

Product Description

Common Names: High Density Polyethylene Sheet
Material Pros: High Impact Resistance, Machinability, Moisture Resistance
Popular Applications: Machine Parts
High Density Polyethylene (HDPE) sheets are moisture resistant, durable, and cost-effective creating a widely popular plastic in the manufacturing and food processing industry.
HDPE is a cost-effective solution for chemical handling, machine / manufacturing, and assembly line applications where it commonly replaces wood and metal. Its impact and moisture resistant qualities ensure that it will not warp, chip, or peel while remaining anti-microbial and easy to clean. Lining and parts fabricated with HDPE require less maintenance and are faster to replace than their metal counterparts. The material’s low coefficient of friction and abrasion resistance cause less damage to products and packaging.

Applications

Chutes, silos, tanks and hoppers.

Material Advantages:

Multicolor HDPE material
Core color differs from surface color
Excellent scratch resistance
easy to clean
Great impact and stiffness
Weather resistance (UV stabilized)
Will not delaminate, crumble, rot or swell
Easy to process with standard tools
Non-hygroscopic

Size and Color

Color	Sheet Size (mm)	Sheet Thickness (mm)
White/Black	1000×1000	2-30
White/Black	2000×1000	2-30
White/Black	3000×1000	2-30
White/Black	4000×1000	2-30

Parameter

Item	Test	Unit	Result
Density	ISO 1183	g/cm³	0.96
Compression Strength	ISO 604	MPa	30
Tensile Strength	ISO 527	MPa	25
Elongation at break	ISO 527	%	200
Notched Impact Strength	ISO 179	KJ/㎡	20
Vicat Softening Temperature	ISO 306:2004	℃	83.8
Rockwell Hardness	ISO 2039-2:1987	R	50.4
Hardness Shore-D	ISO 868	-	60

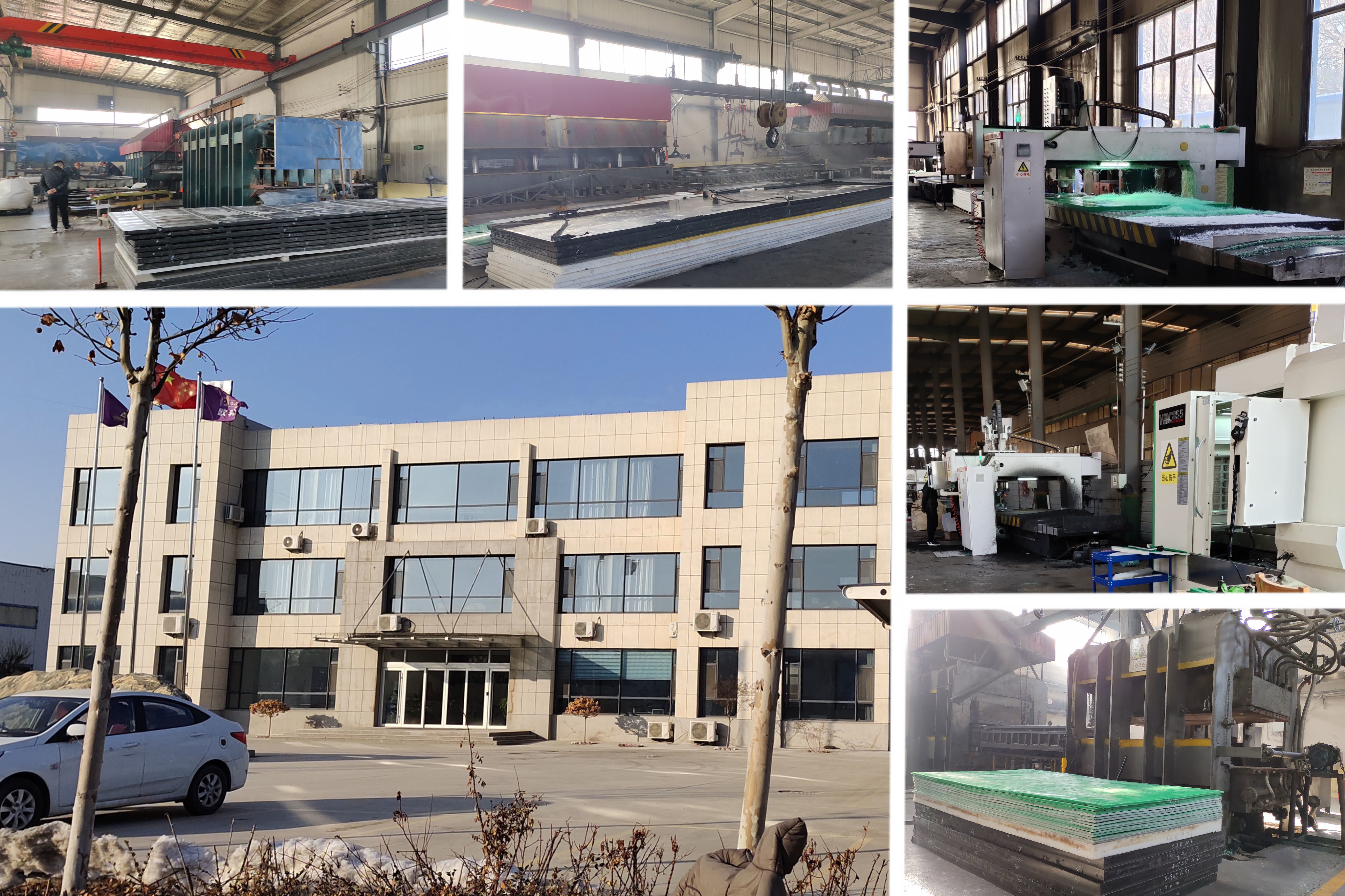

Company Profile

Packing and shipping

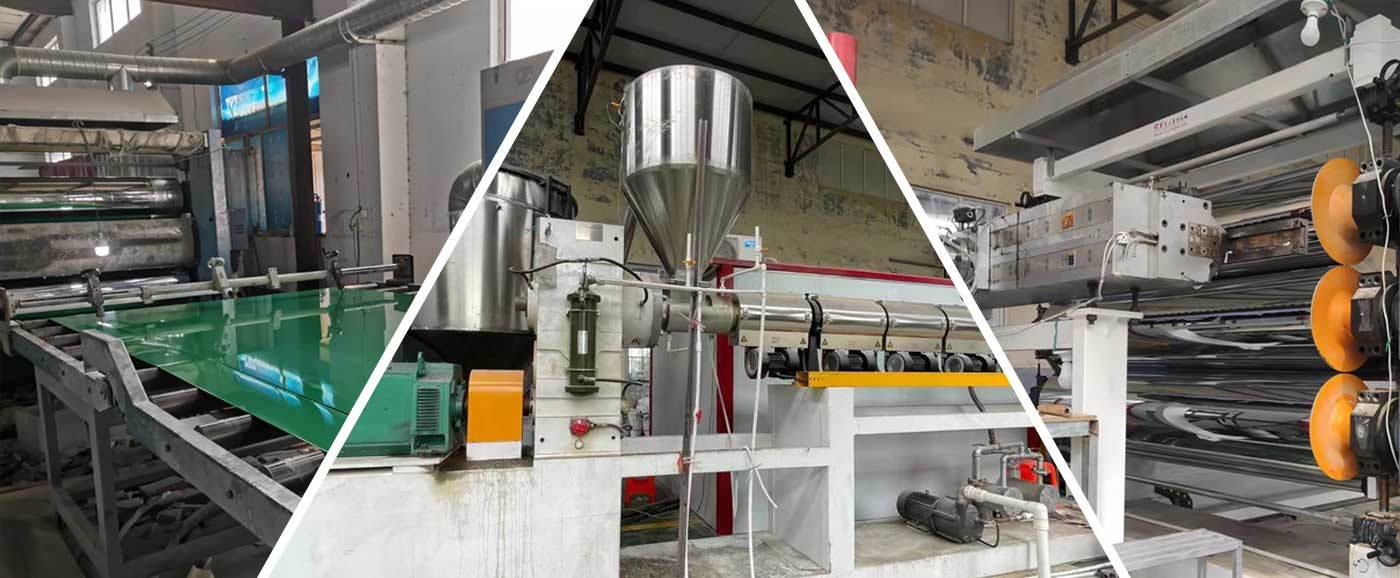

Production equipment
